Кнопочные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Тип | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Маркировка привода | Цвет - привод/колпачок | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FHNESBBNSWITCH PB SPST 2A 48V |
518 |
|
Технический лист |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Blue | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|

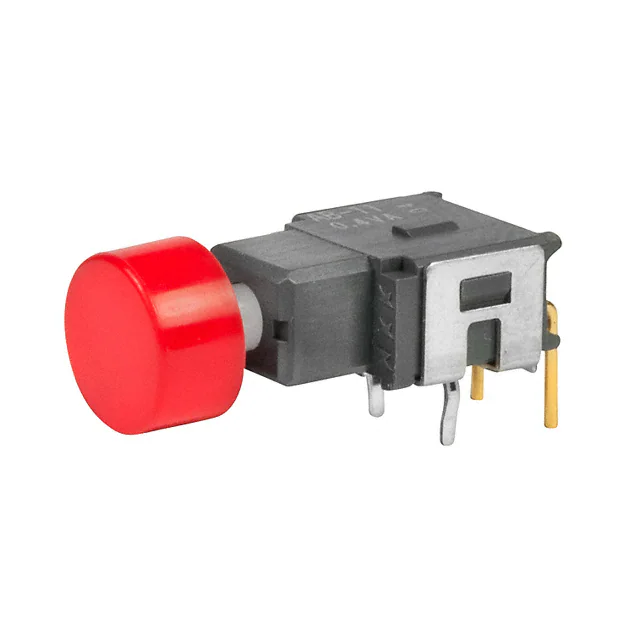

AB11AH-HCSWITCH PUSH SPST-NO 0.4VA 28V |
16,339 |
|
Технический лист |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB11AH-HASWITCH PUSH SPST-NO 0.4VA 28V |
312 |
|
Технический лист |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

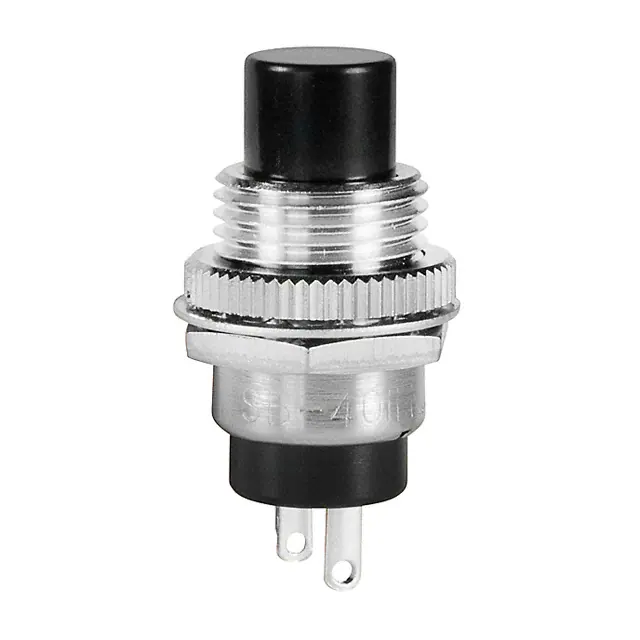

SB4011NCMSWITCH PUSH SPST-NC 3A 125V |
163 |
|
Технический лист |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|

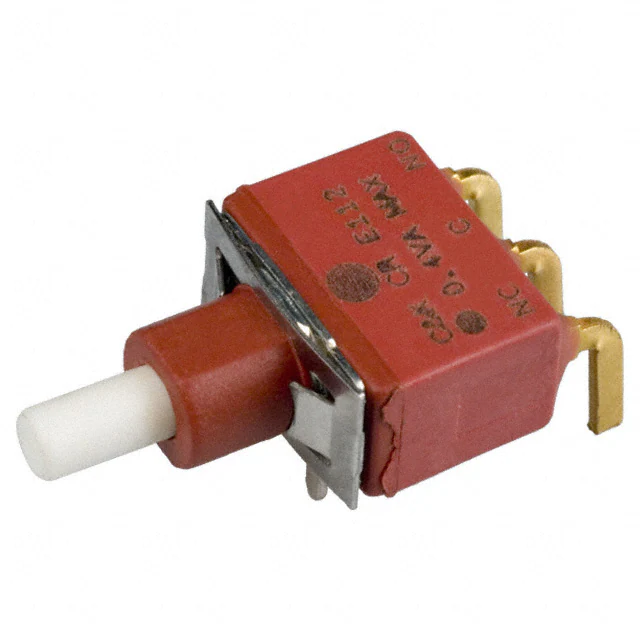

E112SD1ABESWITCH PUSH SPDT 0.4VA 20V |
1,793 |
|
Технический лист |
E010 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|

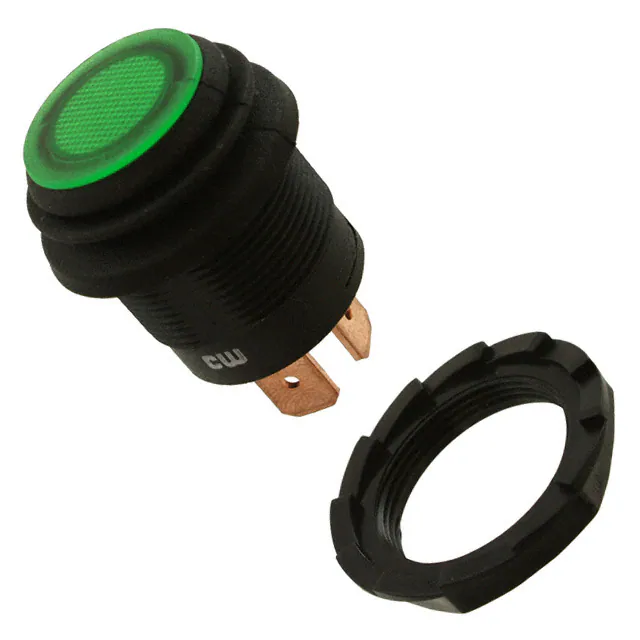

GPB553A2L01BGSWITCH PUSH SPST-NO 10A 14V |
685 |
|
Технический лист |
GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | Green | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
SW-PB5-AA3BG112V-IP40-8INDUSTRITAL PUSHBUTTON SWITCH, 1 |
115 |
|
Технический лист |
SW | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 500mA (AC), 700mA (DC) | 220 V | 24 V | Round, Button | No Marking | Green | LED, Green | 12 VAC/DC | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
EB2061SWITCH PUSHBUTTON DPDT 3A 125V |
623 |
|
Технический лист |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
EB2061PSWITCH PUSHBUTTON DPDT 3A 125V |
137 |
|
Технический лист |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
GB15AH-XASWITCH PUSH SPDT 0.4VA 28V |
2,709 |
|
Технический лист |
GB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
GB15AH-XCSWITCH PUSH SPDT 0.4VA 28V |
717 |
|
Технический лист |
GB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
6611SWITCH PUSH SPST 10A 125V |
568 |
|
Технический лист |
6611 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 10A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Wire Leads | - | - | - | - |
|
30-2SWITCH PUSH SPST-NC 1A 115V |
284 |
|
Технический лист |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|

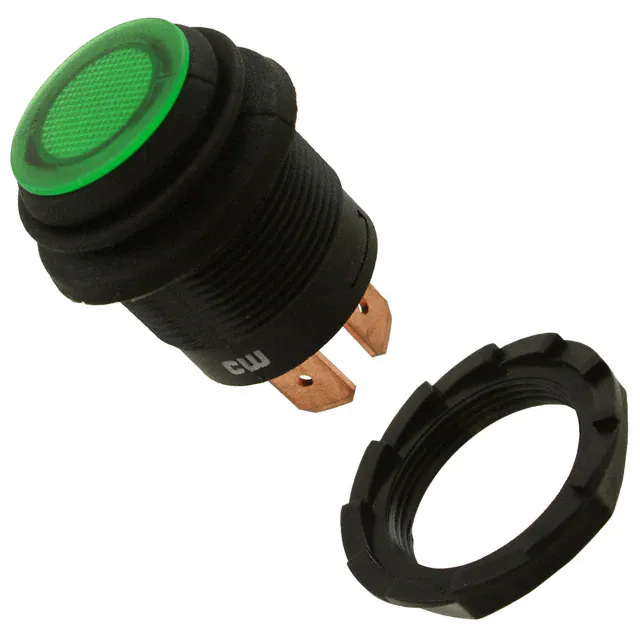

GPB553B2L01BGSWITCH PUSHBUTTON SPST 10A 14V |
796 |
|
Технический лист |
GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 10A (DC) | - | 14 V | Round, Button | No Marking | Green | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
BH16NFSCXSWITCH PB SPST 1A 125VAC |
178 |
|
Технический лист |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Silver | - | - | Quick Connect | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
8161SHZQE2SWITCH PUSHBUTTON SPDT 6A 120V |
3,610 |
|
Технический лист |
8060 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
GPB556A05BRSWITCH PB SPST-NO 0.125A 125V |
451 |
|
Технический лист |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 85°C |
|
|
BH16NFSBXSWITCH PB SPST 1A 125V |
200 |
|
Технический лист |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
4001SWITCH PUSH SPST-NO 1A 115V |
2,439 |
|
Технический лист |
4000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | - | - | -40°C ~ 85°C |
|

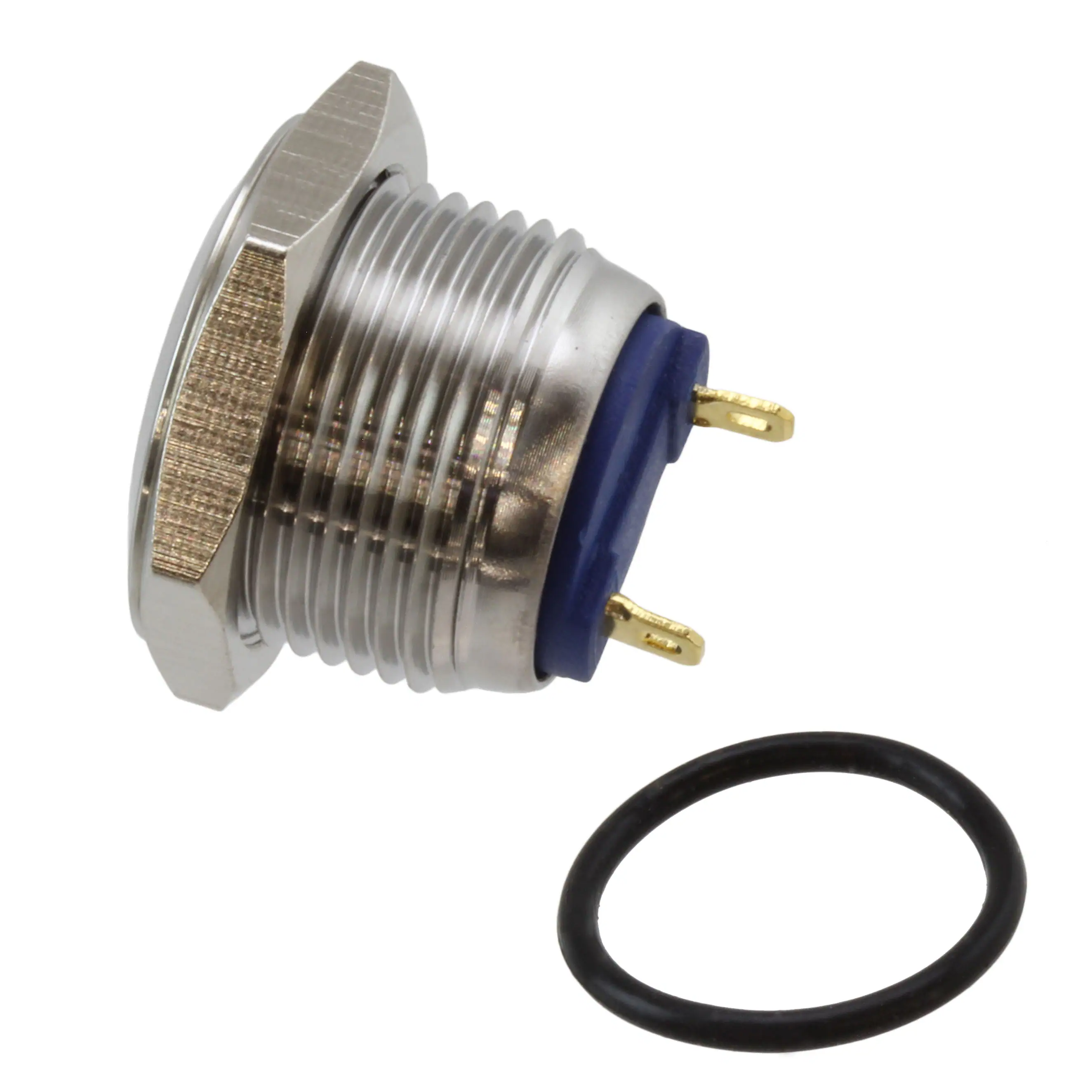

PV2F240SSSWITCH PUSHBUTTON SPST-NO 2A 48V |
1,336 |
|
Технический лист |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
